Product
LoRaWAN Systems
A curated ecosystem of pre-provisioned LoRaWAN sensors and gateways, ready to deploy on the Devlabs platform. Each device auto-connects on first power-up — no network setup, no manual onboarding.
Device catalogue
10 devices. One platform.
Every device is pre-provisioned by Devlabs — registered, configured, and validated before shipping. Mount it, connect power, and data is live on the platform from the first uplink.
Sensor nodes

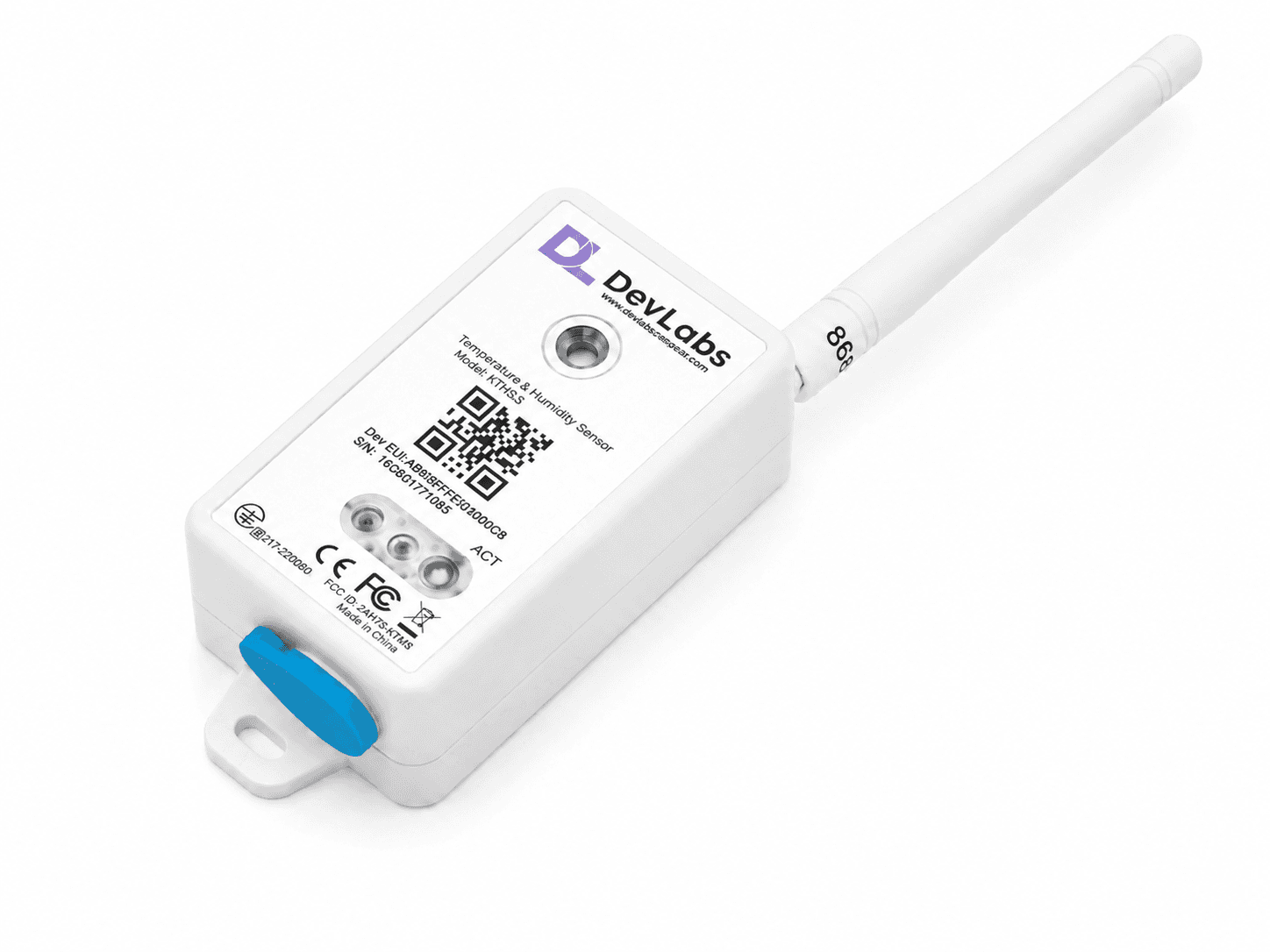

T/RH node
Most deployedCompact LoRaWAN temperature & humidity node for indoor and sheltered environments — pre-provisioned and ready to deploy.

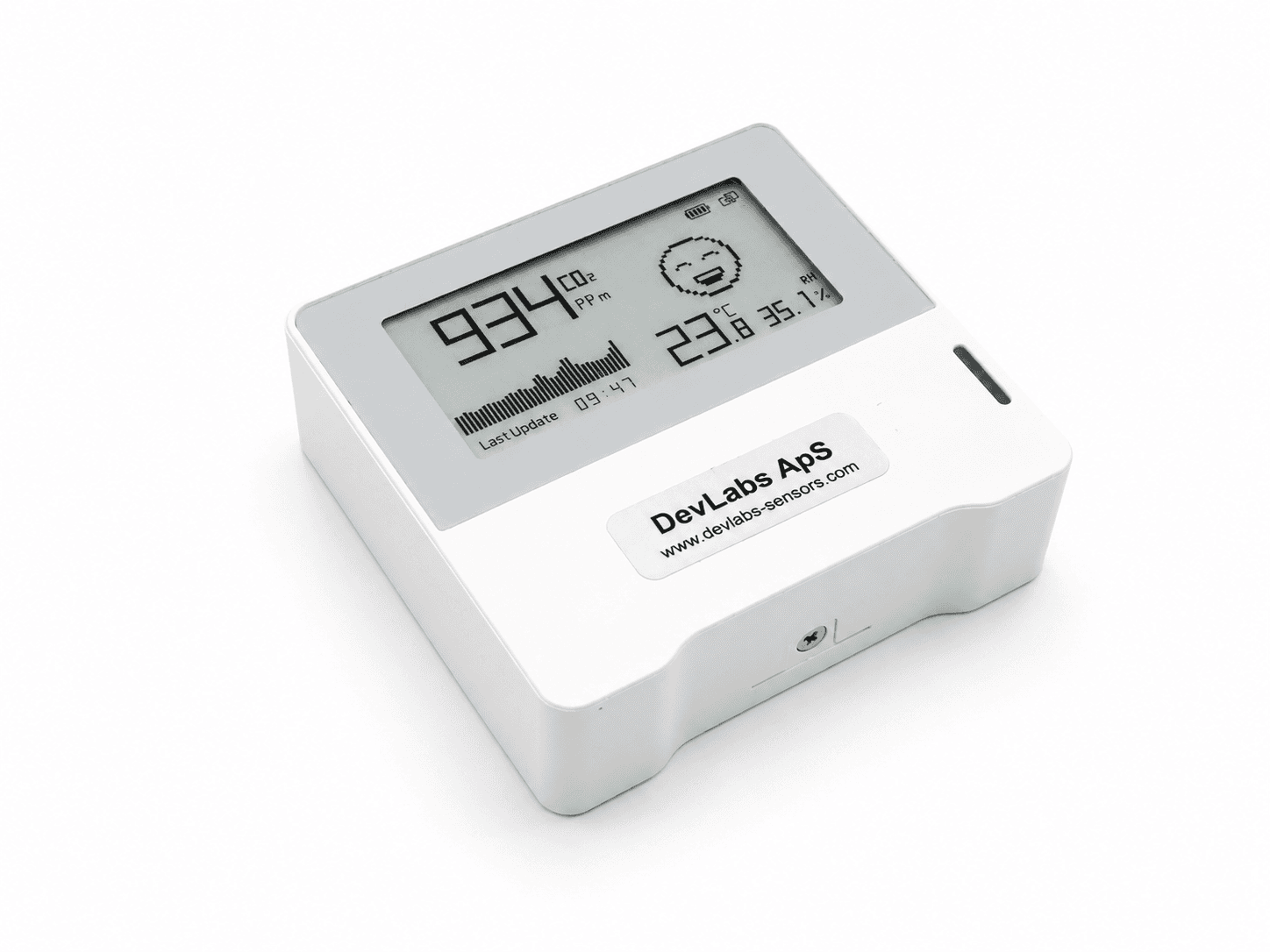

IAQ node — small
Compact indoor air-quality node: CO₂, temperature and humidity with an E-ink display and traffic-light status.

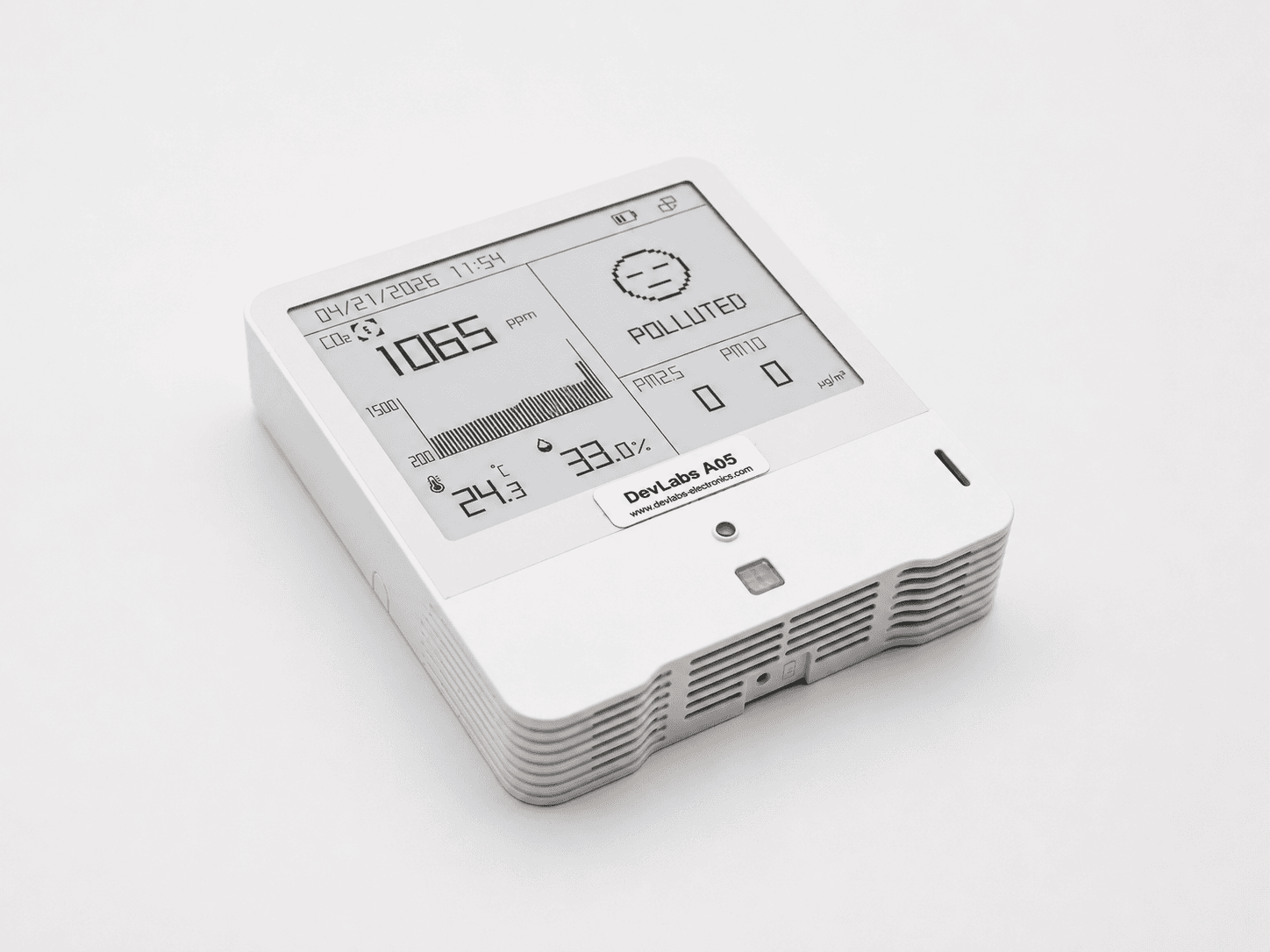

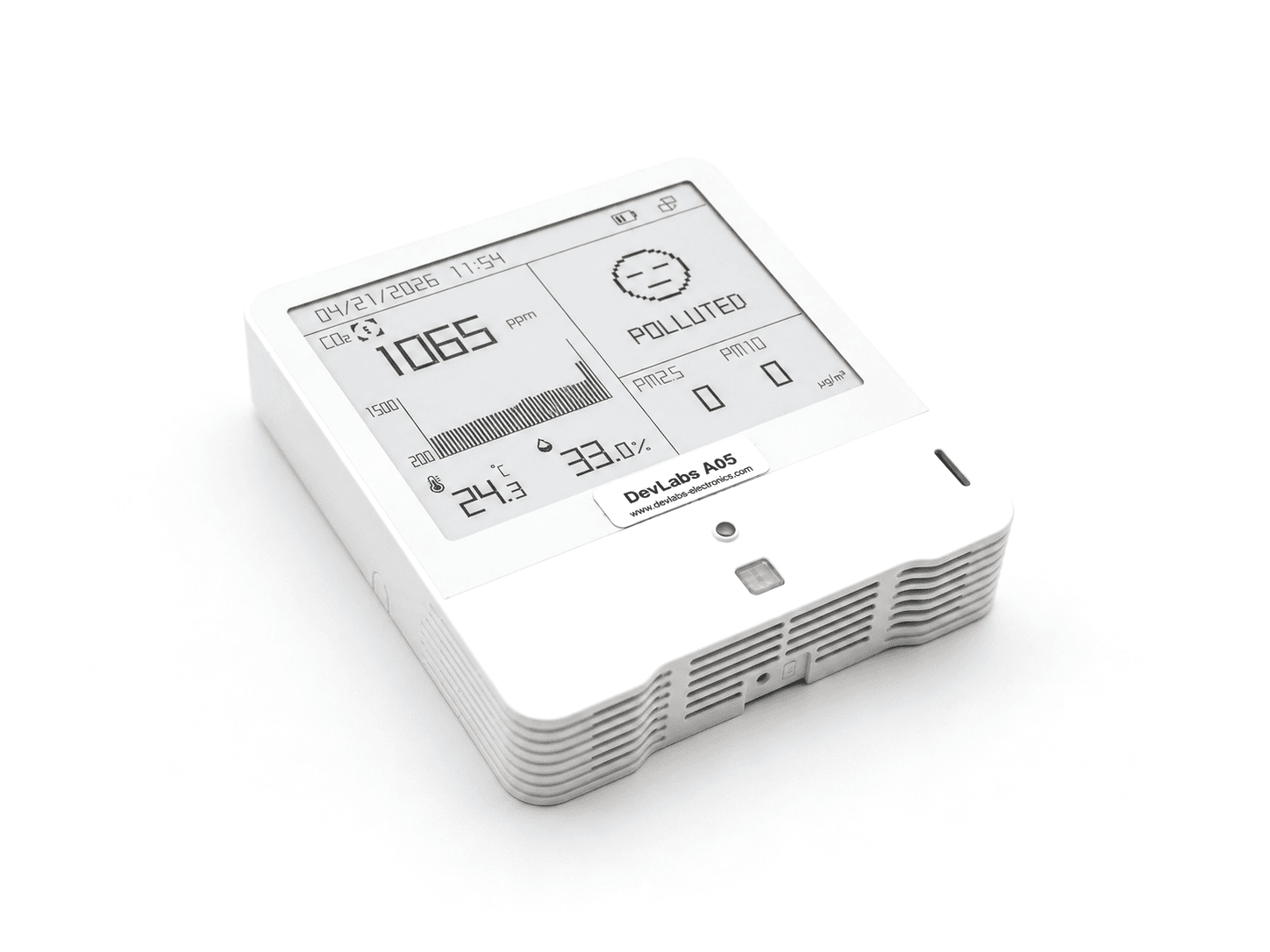

IAQ node — medium
Extended indoor air-quality node: CO₂/T/RH plus PM2.5/PM10 on a larger E-ink display.

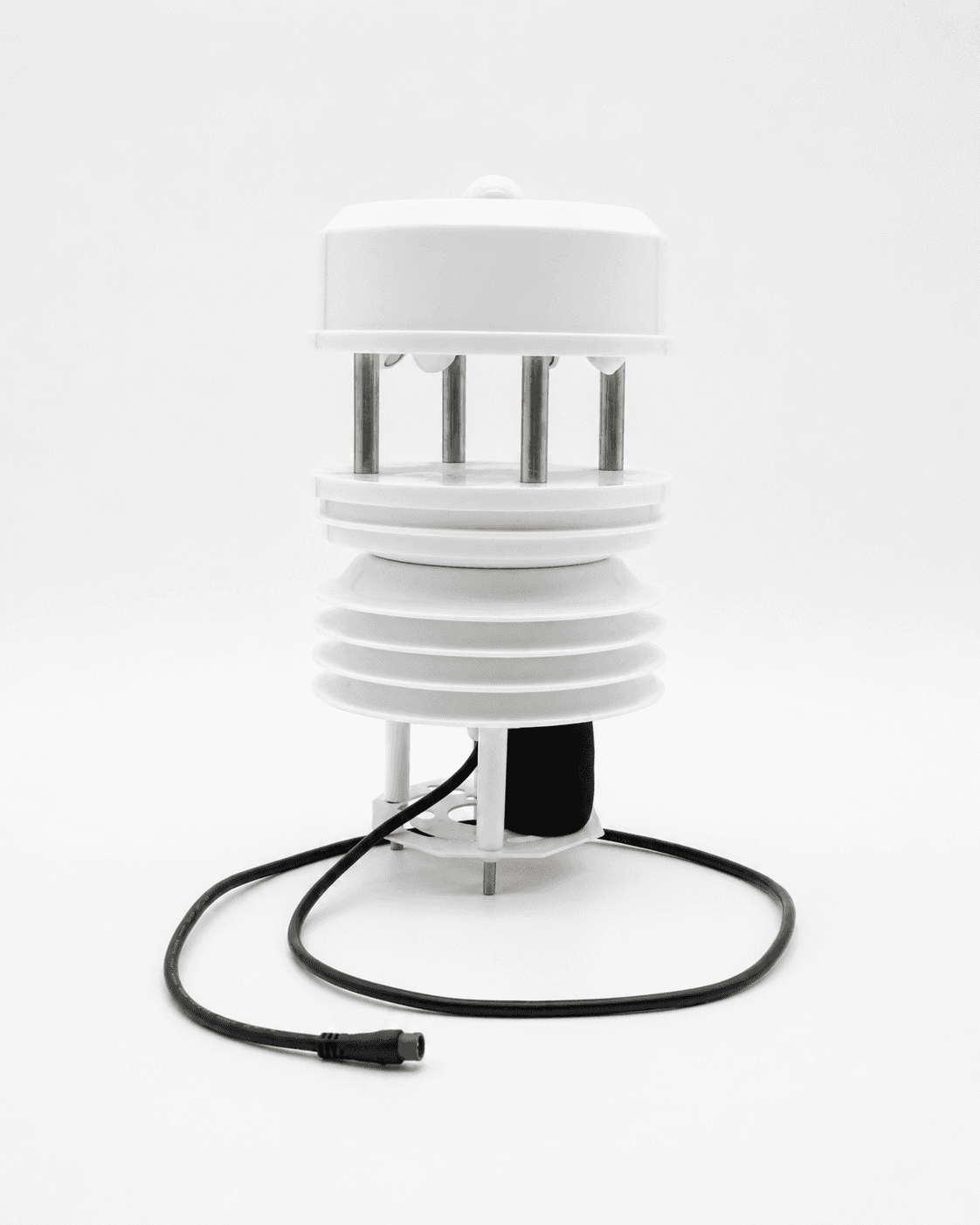

Weather Station Kit
LoRaWAN weather monitoring kit: 9-in-1 sensing (wind, T/RH, pressure, PM2.5/10, noise, illumination) with optional rain gauge.

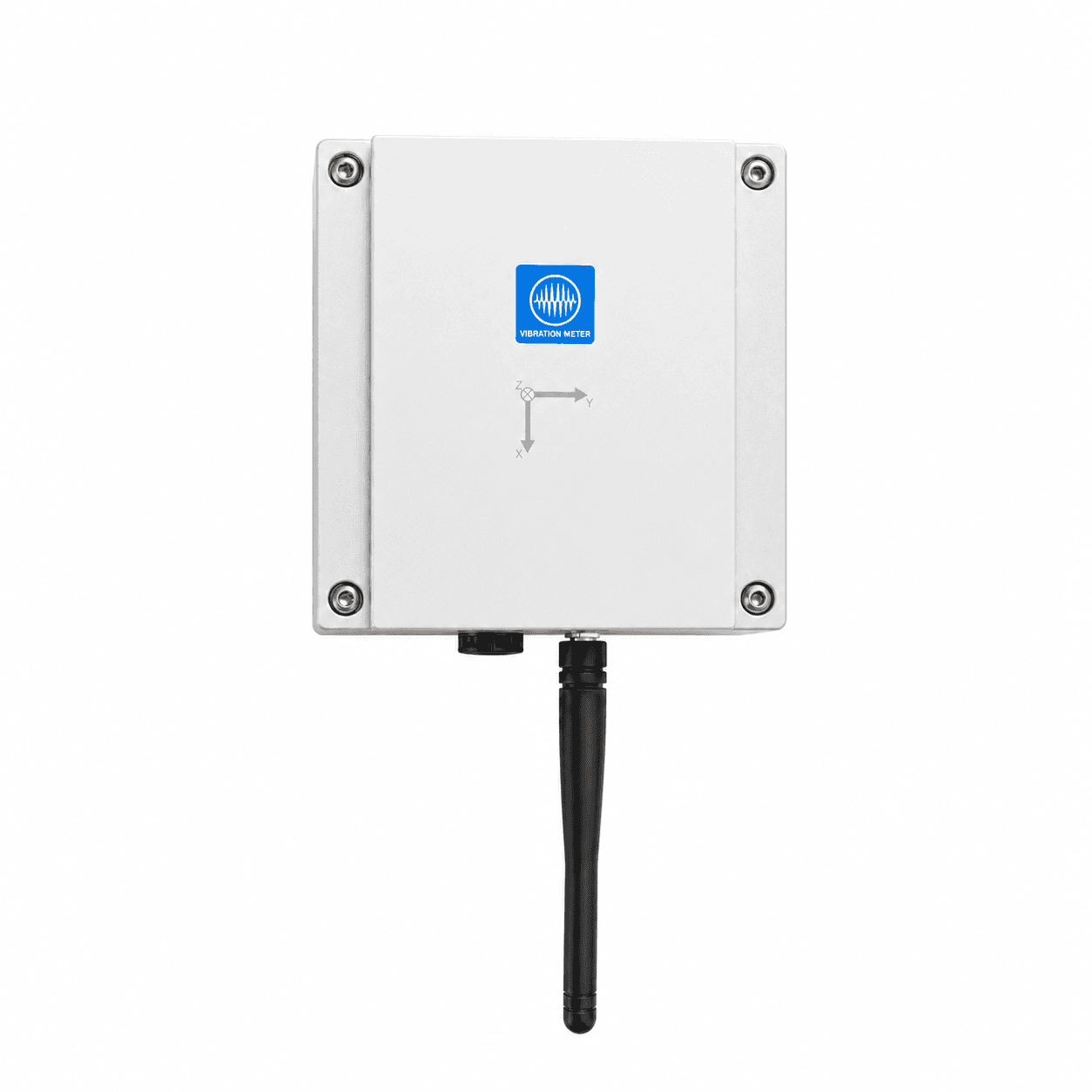

Vibration Monitoring System
Wireless triaxial vibration monitoring for construction, infrastructure and structural-health applications, with on-device edge processing.

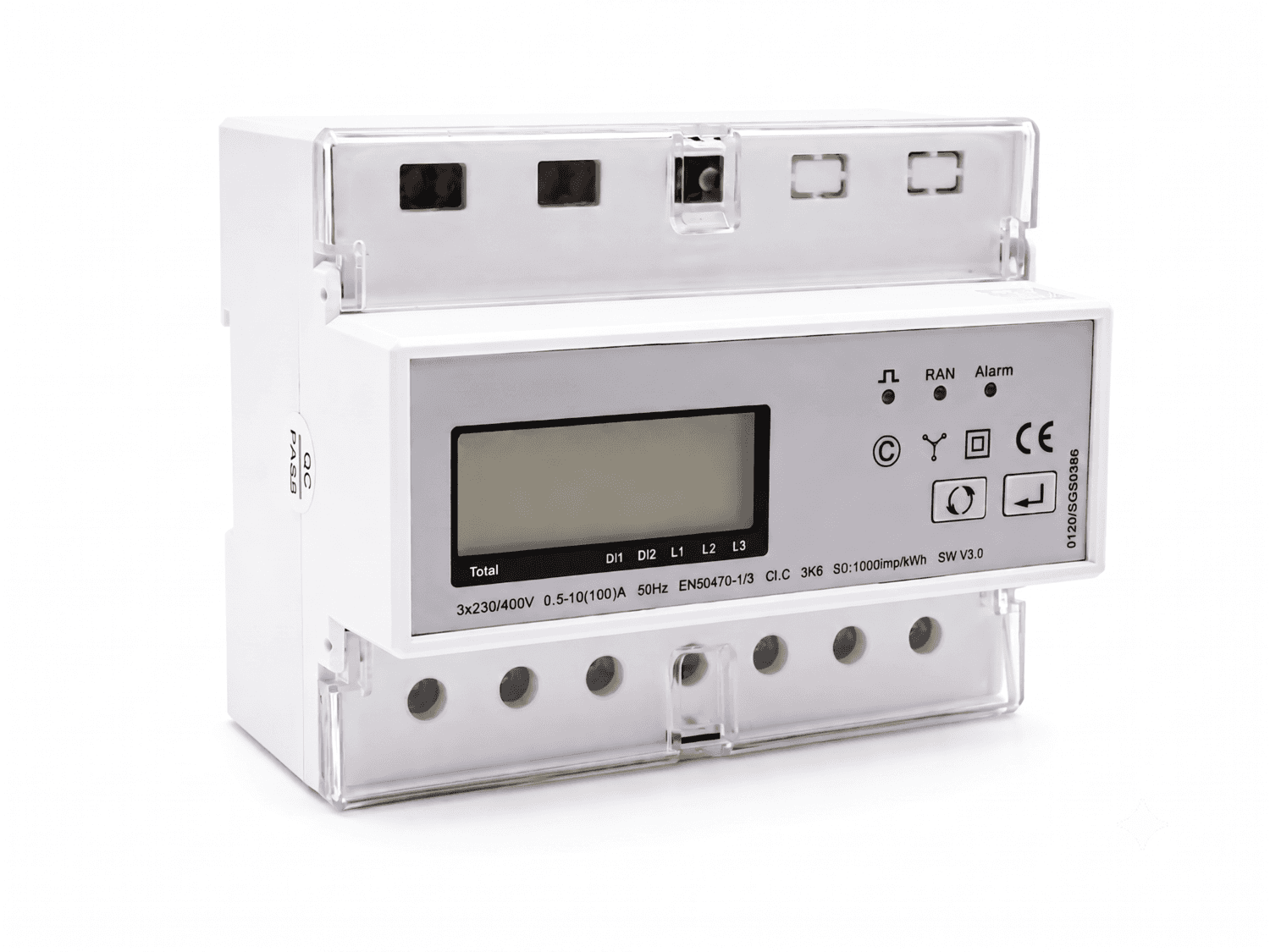

Energy Metering node (3-phase)
3-phase LoRaWAN energy monitoring: active energy, current, voltage, frequency, power factor, import/export, with remote load-control relay.
Connectivity / bridge nodes

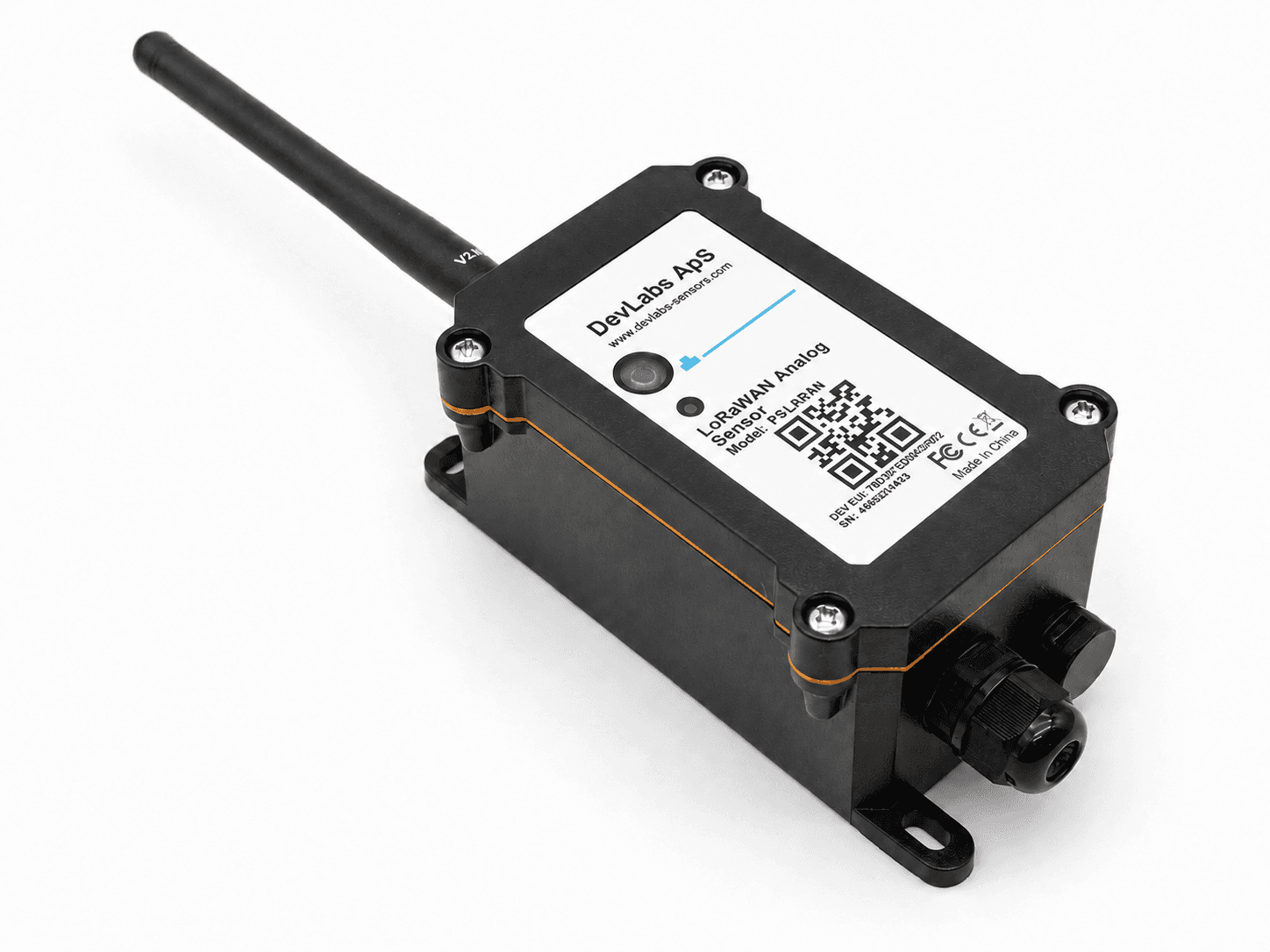

Analogue Input node
Connect 4–20 mA / 0–30 V sensors (pressure, level, flow) to the Devlabs platform wirelessly.

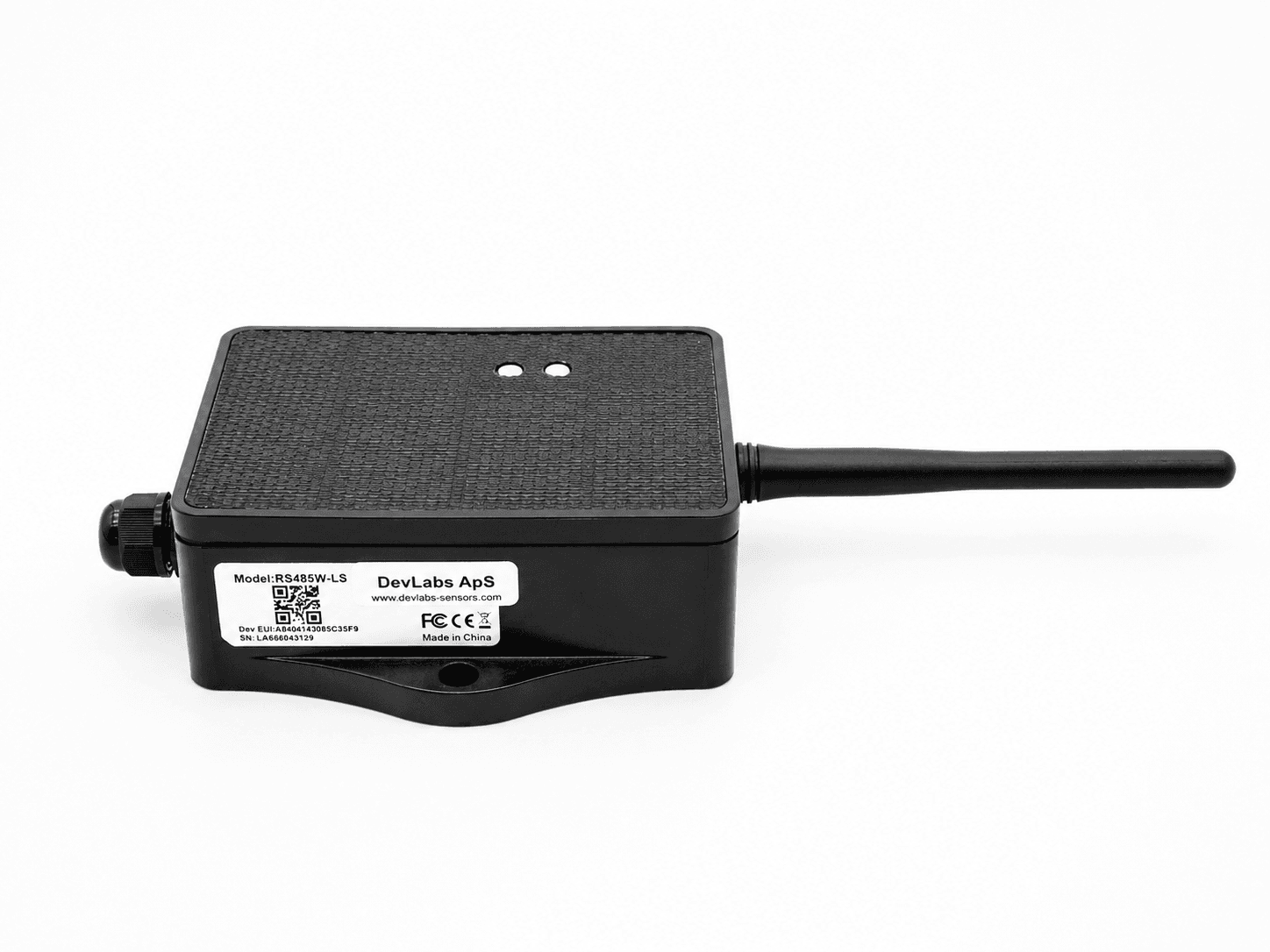

RS-485 Bridge node
Bring RS-485 Modbus devices (meters, counters, industrial equipment) onto the Devlabs platform wirelessly.
Gateways

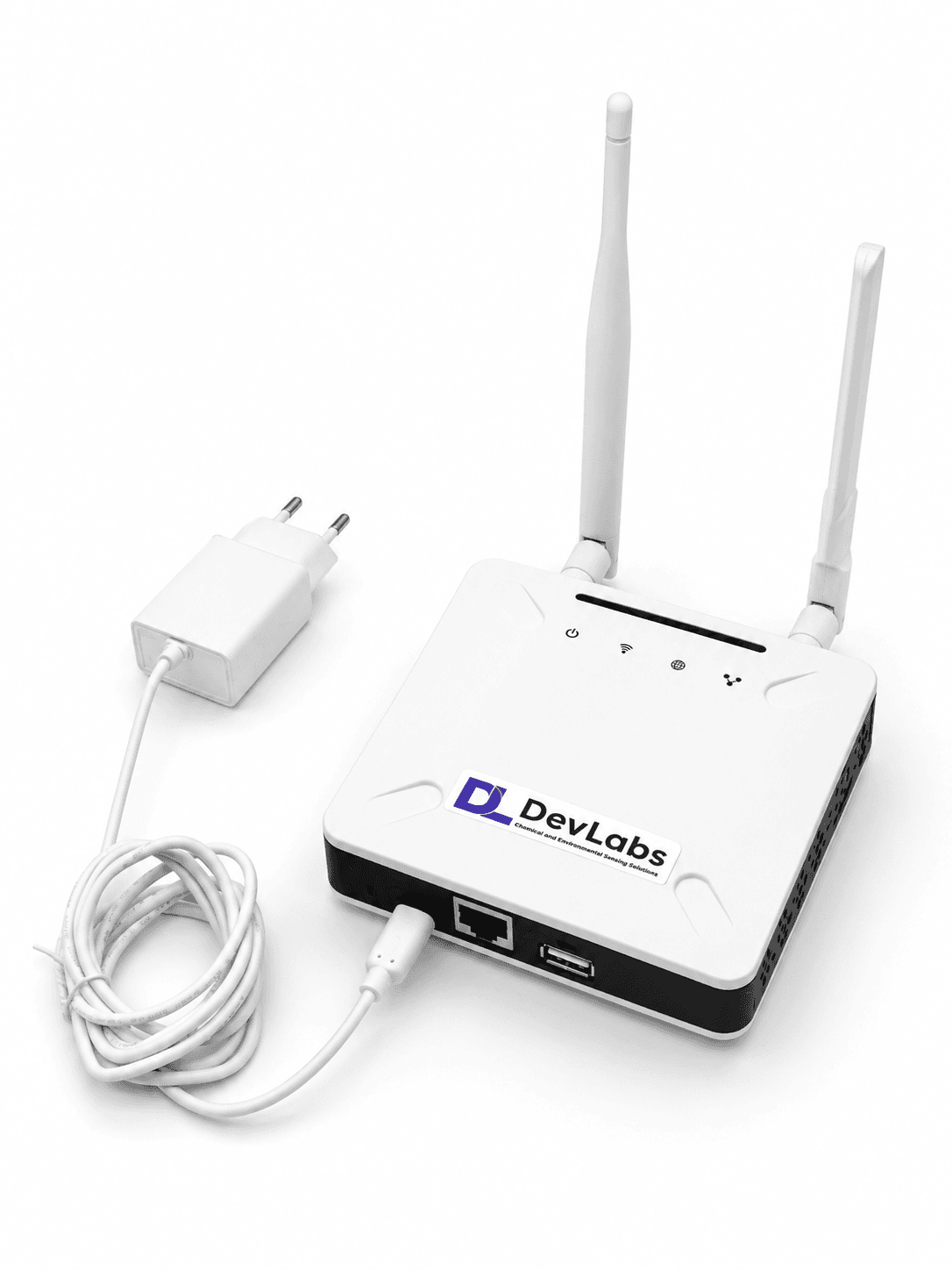

Indoor LoRaWAN Gateway
Connects LoRa sensors to the Devlabs platform indoors. EU868 Class A/B/C, 4G LTE + Ethernet, auto-provisioning.

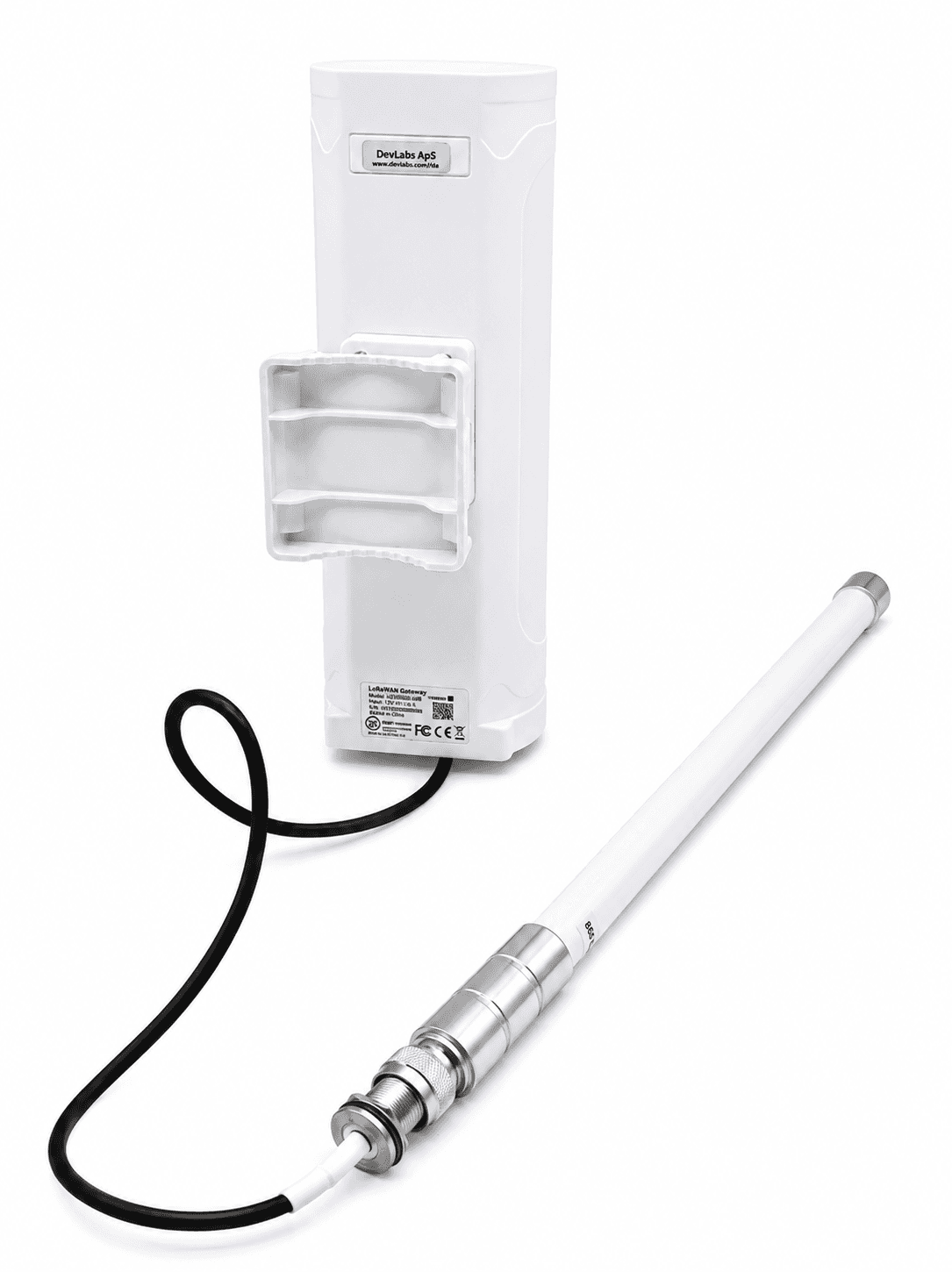

Outdoor LoRaWAN Gateway
Permanent outdoor LoRa coverage. IP65, built-in lightning protection, GPS, auto-provisioning.
Overview

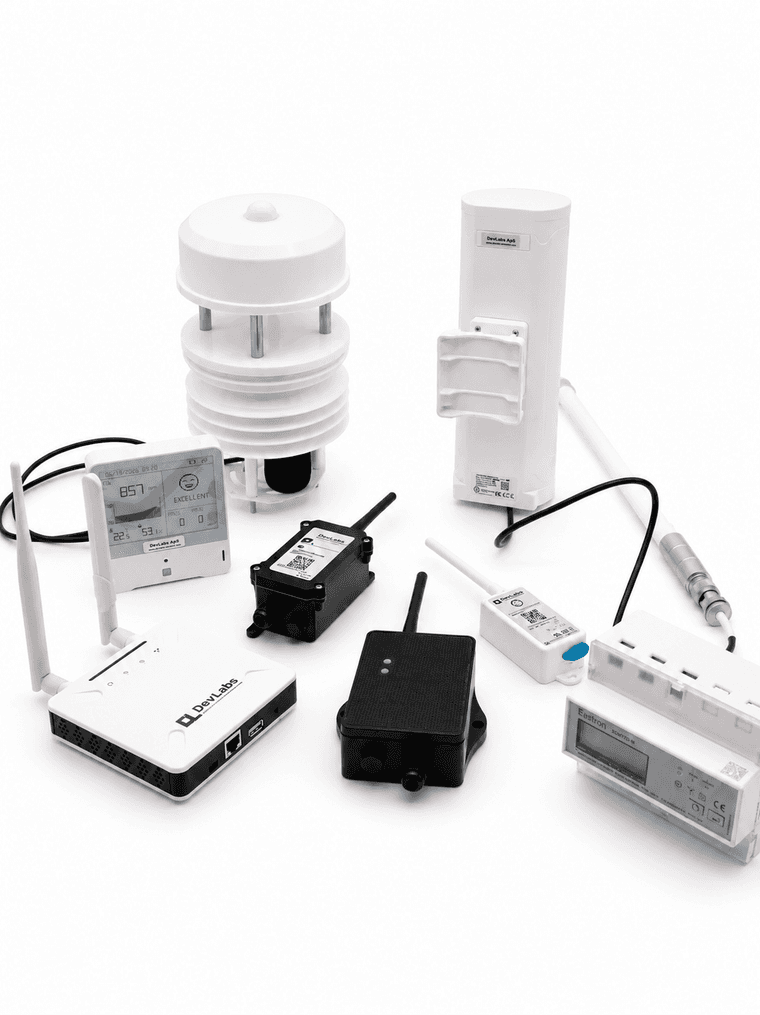

Devlabs LoRaWAN Systems is a managed sensing product line — a curated catalogue of LoRaWAN end devices and gateways, delivered as a complete pre-provisioned package. Devlabs selects, configures, registers, and validates every device before shipping. The customer mounts it and connects power. Data is live on the dashboard from the first transmission.
The architecture has three layers: end devices transmit wirelessly to a Devlabs gateway; the gateway connects to the LoRaWAN network server via 4G cellular backhaul; data is decoded and forwarded to the Devlabs platform. No customer internet connection is required at the monitoring site. SIM cards are included and pre-configured in every gateway. The Things Industries (TTI) operates the LoRaWAN network server — providing enterprise-grade infrastructure and EU868 support.
LoRaWAN Systems is available standalone or as a complement to a DGEM, DVM, or WQS installation — extending wireless sensing to areas of a site where full-specification instruments are not required. All devices share the same Devlabs platform view, alarm system, and API.
Capabilities
Key features
Zero-friction deployment
Every device is registered, configured, and validated by Devlabs before shipping. Mount the device, connect power — data is live on the Devlabs dashboard from the first transmission. No IoT configuration required at site.
4G cellular gateway backhaul — SIM included
Devlabs gateways connect to the network server via 4G cellular backhaul. SIM cards are included and pre-configured. No customer internet connection is required at the monitoring site.
Pre-provisioned before shipping
Devlabs registers every end device on The Things Industries network server, writes payload decoders, and validates data flow to the platform before dispatch. Customers receive a working system, not a kit to configure.
10-device catalogue
T/RH, indoor IAQ (three form factor sizes), single-phase energy, weather station, industrial vibration, water level, RS-485 bridge, and 4–20 mA analogue converter. Purpose-selected, validated, and supported by Devlabs.
The Things Industries network server
All deployments use The Things Industries (TTI) as the LoRaWAN network server — enterprise-grade infrastructure with EU868 support and global roaming capability.
Unified platform view
All LoRaWAN devices appear on the same Devlabs platform as DGEM, DVM, WQS, and TDL1200 units. One dashboard, one API, one alarm system — regardless of device type or data path.
Specifications
Technical specifications
| Protocol | LoRaWAN (EU868) |
| Network server | The Things Industries (TTI) |
| Gateway backhaul | 4G cellular (Devlabs-managed SIM included) |
| Indoor gateway | DL-GW-IN — wall-mount, indoor installation |
| Outdoor gateway | DL-GW-OUT — IP65-rated, outdoor or rooftop installation |
| End devices | 10 types: T/RH, IAQ indoor S/M/L, single-phase energy, weather, industrial vibration, water level, RS-485 bridge, 4–20 mA analogue converter |
| Indoor device rating | IP30 (indoor use only — not suitable for outdoor or wet environments) |
| Provisioning | Pre-provisioned by Devlabs — device registration, payload decoding, and platform integration complete at dispatch |
| Data platform | The Devlabs platform |
| Typical data interval | 5–15 minutes (device-dependent) |
| Data rate limitation | Not suitable for sub-minute data intervals |
| Customer site requirement | Mains power at gateway and device locations only — no customer internet connection required |
Specifications subject to change without notice. Contact Devlabs for the current datasheet.
Applications
Deployed across sectors
Data centre & construction
Air quality and water quality monitoring across construction programmes.
View use cases →HVAC & cleanrooms
In-duct IAQ and RS-485 Modbus RTU integration for building management systems.
View use cases →Academic & environmental research
Configurable, field-deployable platforms for research campaigns.
View use cases →Ecosystem
Works alongside
Devlabs data platform
All Devlabs hardware connects to the same cloud platform — one interface for real-time monitoring, alarms, and API access across your entire deployment.
Platform overview →Get in touch
Ready to specify a LoRaWAN Systems deployment?
Our team can scope your monitoring requirements, recommend a configuration, and give you an indicative price within 48 hours.
