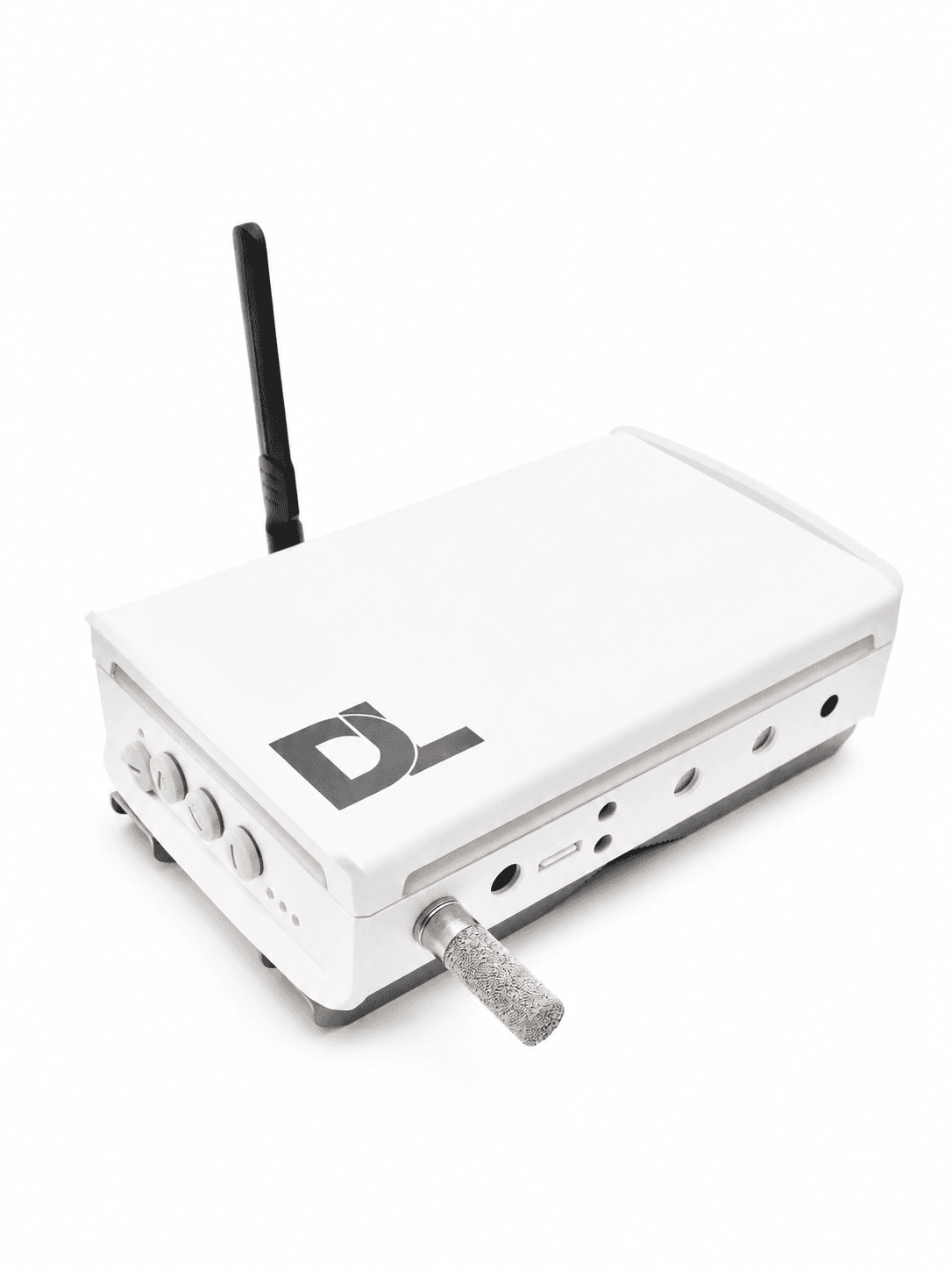

DGEM
Modular, connected outdoor environmental monitor — configured to your sensor payload, auto-provisioned on first connection
Overview
The DGEM is Devlabs' flagship connected environmental monitoring platform. Built around a proprietary mainboard, it simultaneously reads a wide range of sensor modules and transmits averaged data to the Devlabs data platform via 4G LTE.
Every DGEM is assembled to a customer-specific sensor configuration. Common deployments include particulate matter and electrochemical gas sensing for construction site air quality monitoring, multi-parameter campaigns for environmental research, and ambient reference installations alongside DVM in-duct units in HVAC environments.
The DGEM is an indicative monitoring platform and is not a certified reference instrument for regulatory compliance reporting. For projects with regulatory reference requirements, Devlabs will advise on appropriate parallel monitoring arrangements.
Capabilities
Key features
Configurable sensor payload
Choose from particulate matter (PM1/2.5/4/10), CO₂, eVOC, NOₓ index, electrochemical trace gas cells (NO₂, CO, O₃, NH₃), noise, wind speed, and weather. Every DGEM is assembled to your specification at order — there is no default configuration.
4G LTE connectivity with SIM included
A Devlabs-managed SIM is included and pre-configured. No SIM procurement or APN configuration required. Data reaches the platform over cellular from first power-on, with 2G fallback where 4G coverage is limited.
Auto-provisioned on first connection
Each DGEM registers itself on first cellular connection. Dashboards populate automatically — no manual platform setup or configuration is required at site.
Offline data buffering
~200 measurement records are retained locally during connectivity interruptions and flushed to the platform on reconnection. Gaps in connectivity do not mean gaps in the record.
Remote configuration
Measurement intervals and alarm thresholds are configurable remotely via the Devlabs platform. No firmware update or site visit required to change operating parameters.
OTA firmware updates
Firmware is updated remotely via the Devlabs platform. Units in the field receive updates without requiring physical access.
Specifications
Technical specifications
| Form factor | IP65 outdoor enclosure, pole or wall mount |
| Power | 220 VAC mains (PSU included) |
| Primary connectivity | 4G LTE with 2G fallback (Devlabs-managed SIM included) |
| Secondary connectivity | WiFi (802.11 b/g/n) |
| Data platform | The Devlabs platform (auto-provisioned on first connection) |
| Offline buffer | ~200 records, flushed automatically on reconnection |
| OTA firmware | Remote, via the Devlabs data platform |
| Standard on-board sensors | Temperature & humidity, accelerometer, light & colour |
| Optional: Particulate matter | PM1/PM2.5/PM4/PM10 + particle number concentration |
| Optional: CO₂, eVOC, NOₓ | Combined multi-gas IAQ module (DL-S-IAQ66) |
| Optional: CO₂ (standalone) | NDIR CO₂ — standard range (DL-S-CO2N) or premium range (DL-S-CO2P) |
| Optional: Trace gas (single cell) | NO₂, CO, O₃, or NH₃ — electrochemical sensor (DL-S-EC1) |
| Optional: Trace gas (dual cell) | Two electrochemical cells in one module (DL-S-EC2) |
| Optional: VOC | High-fidelity photoionisation VOC module (DL-S-VOC) |
| Optional: Wind | Wind speed & direction — RS-485 external probe (DL-P-WIND) |
| Optional: Noise | Sound pressure level, Class II dBA — RS-485 external probe (DL-P-NOISE) |
| Optional: Weather | T/RH/pressure, wind, solar radiation, rainfall — 10-in-1 probe (DL-P-WS) |
| Limitations | Not a certified reference instrument. Not suitable for flue gas or stack monitoring. |
Specifications subject to change without notice. Contact Devlabs for the current datasheet.
Applications
Deployed across sectors
Data centre & construction
Air quality and water quality monitoring across construction programmes.
View use cases →HVAC & cleanrooms
In-duct IAQ and RS-485 Modbus RTU integration for building management systems.
View use cases →Academic & environmental research
Configurable, field-deployable platforms for research campaigns.
View use cases →Ecosystem
Works alongside
Devlabs data platform
All Devlabs hardware connects to the same cloud platform — one interface for real-time monitoring, alarms, and API access across your entire deployment.
Platform overview →Get in touch
Ready to specify a DGEM deployment?
Our team can scope your monitoring requirements, recommend a configuration, and give you an indicative price within 48 hours.
